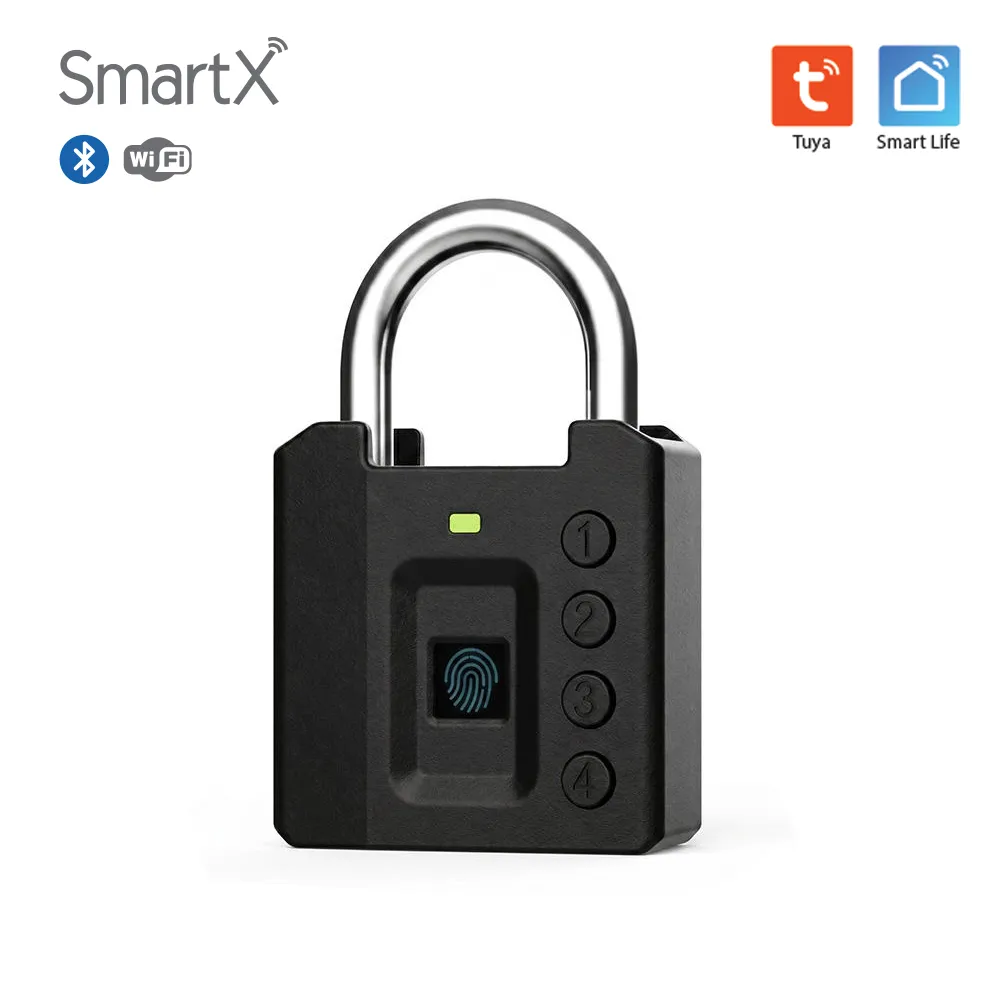

Tuya Bluetooth Smart Padlock – SX-PL705

The SmartX SX-PL705 Tuya Bluetooth Smart Padlock brings keyless smart access to a compact and durable padlock design.

Instead of relying only on a traditional key, the SX-PL705 provides multiple ways to unlock, including fingerprint, passcode, Tuya App and mechanical key access.

Its IP67-rated construction, zinc alloy lock body and A3 steel shackle make it suitable for a variety of everyday security applications where convenient keyless access is required.

The lock connects to the Tuya Smart / Smart Life ecosystem through Bluetooth, allowing compatible smartphone control when you are within Bluetooth range.

For users who need remote access, remote unlocking notifications and access records, the SX-PL705 can be paired with a compatible Tuya Bluetooth-to-WiFi Gateway, available separately from SmartX BD.

Multiple Ways to Unlock the Smart Padlock

The SX-PL705 is designed to give you more than one way to access your lock.

Fingerprint Unlock

Use your registered fingerprint for quick, keyless access.

The padlock can store up to 20 fingerprints, making it suitable for individual users as well as small groups.

Passcode Unlock

The lock supports up to 100 password combinations, providing another convenient keyless access method.

This can be useful when several authorized users need access without carrying a physical key.

Tuya App Unlock

Connect the SX-PL705 to the Tuya Smart / Smart Life App via Bluetooth and unlock the padlock from your smartphone while within Bluetooth communication range.

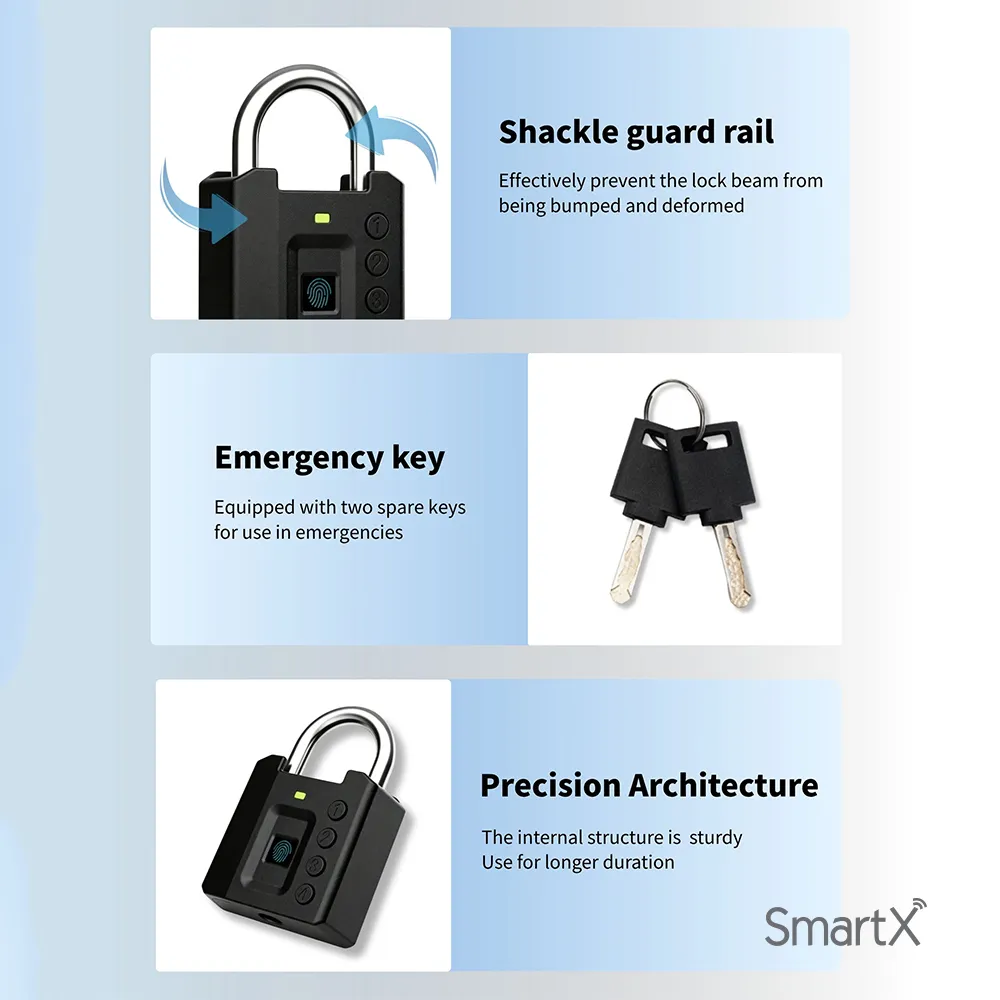

Mechanical Key Backup

The SX-PL705 also includes a mechanical key unlocking option, providing a traditional backup method when required.

This gives the padlock an important advantage for users who want smart keyless access while still having a physical backup option.

Bluetooth Smart Padlock with Tuya App

The SX-PL705 uses Bluetooth connectivity to communicate with your smartphone.

After pairing the padlock with the Tuya App, you can manage supported smart-lock functions directly from your phone.

Bluetooth operation is particularly useful when you are physically near the padlock and want to unlock it without entering a fingerprint or passcode.

Important: Bluetooth control is designed for use within Bluetooth communication range. The padlock itself does not have built-in WiFi.

Want Remote Access? Add a Tuya Bluetooth WiFi Gateway

One of the most useful features for a Tuya-based smart padlock is the option to add a Tuya Bluetooth-to-WiFi Gateway.

Without a gateway, the SX-PL705 primarily provides local Bluetooth App control.

With a compatible Tuya Bluetooth WiFi Gateway, supported functions can be accessed remotely through the internet.

What does the Gateway add?

Depending on the supported Tuya configuration, a gateway can enable:

• Remote App unlocking
• Remote unlocking event notifications
• Remote access to unlocking records/logs
• Smartphone access when you are away from the padlock
• Internet-connected management of the Bluetooth smart lock

This is particularly useful when the padlock is installed somewhere you cannot physically reach every time access is required.

Example

Imagine the padlock is installed on:

• A storage room
• Office cabinet or gate
• Warehouse
• Outdoor equipment
• Rental property
• Remote storage area

Someone arrives while you are somewhere else.

With a compatible Tuya Bluetooth WiFi Gateway, you can use the Tuya App to perform supported remote functions instead of needing to be physically beside the lock.

Tuya Bluetooth WiFi Gateway is sold separately by SmartX BD.

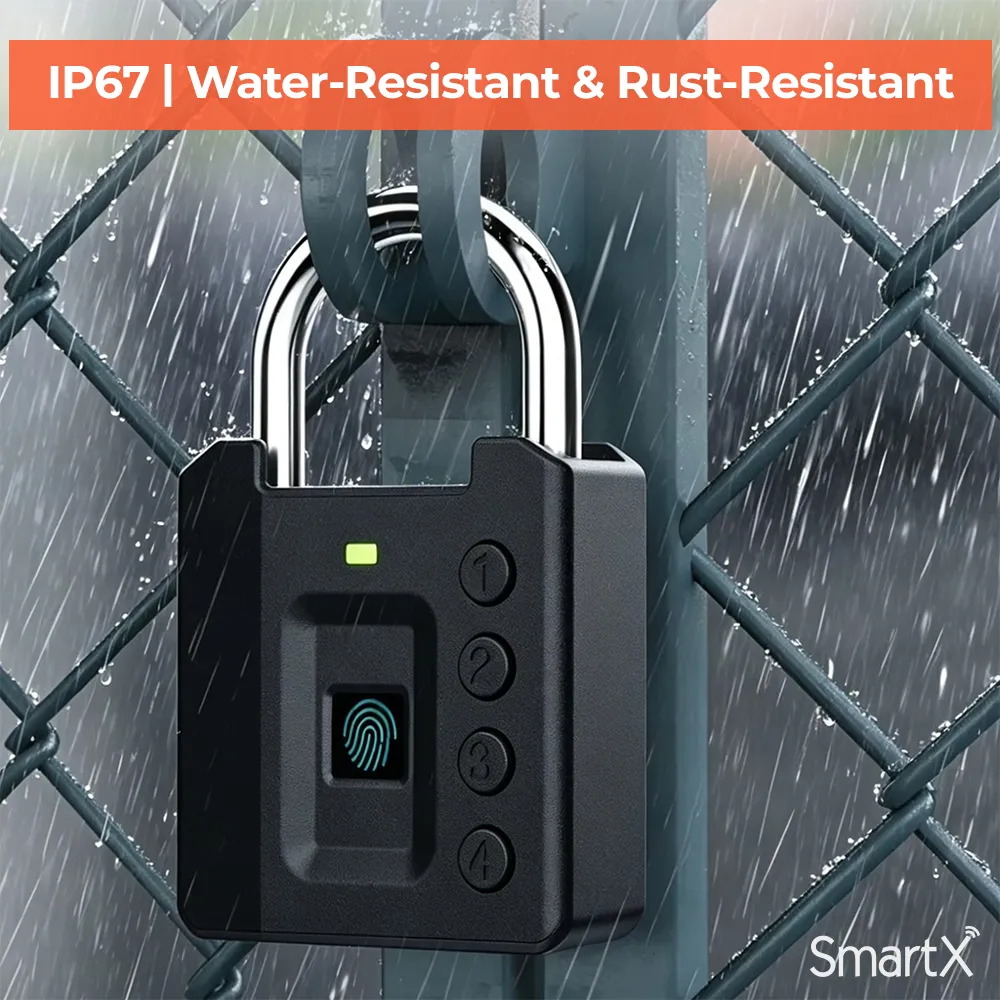

IP67 Water-Resistant Smart Padlock

The SX-PL705 has an IP67-rated design, providing a high level of protection against dust and temporary water immersion under the applicable IP67 test conditions.

This makes it suitable for applications where a padlock may encounter outdoor moisture, rain or dusty environments.

However, IP67 does not mean the padlock should be deliberately exposed to continuous water, pressure washing or harsh environmental conditions.

For long-term outdoor use, proper installation and protection are still recommended.

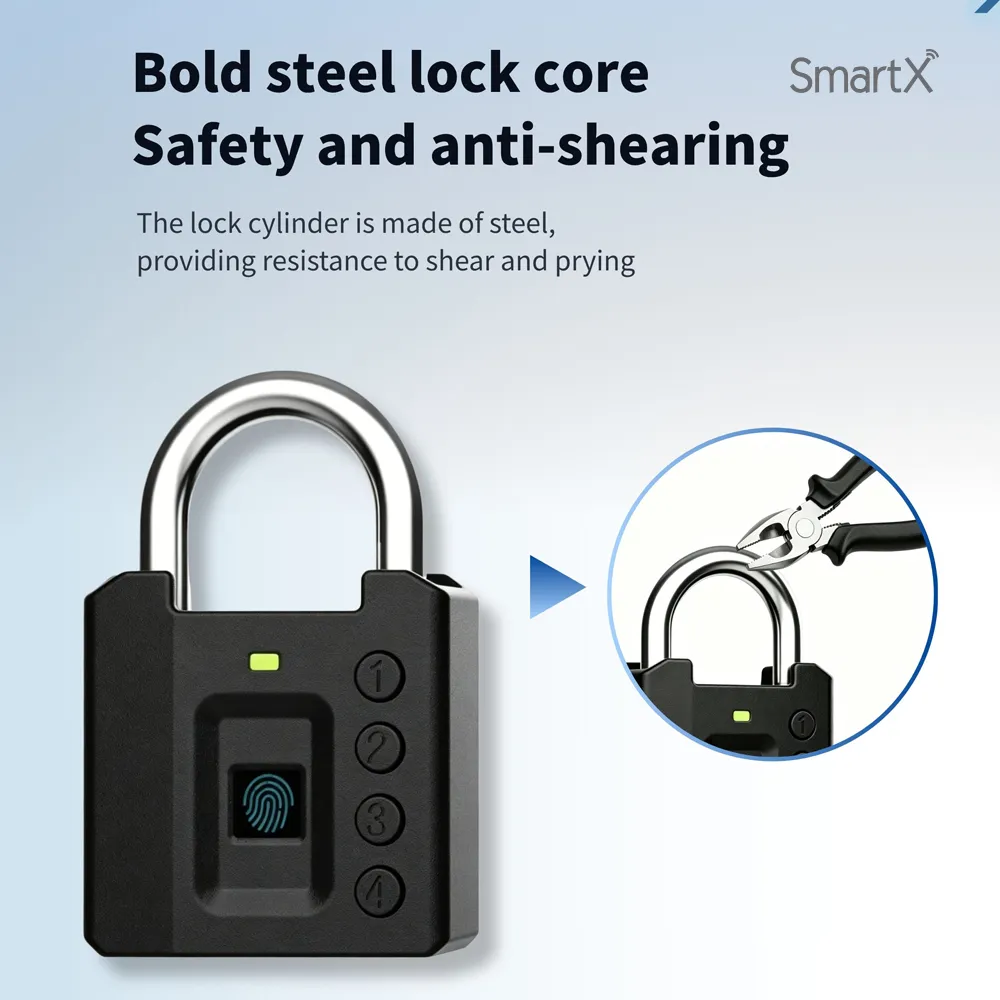

Durable Zinc Alloy Body & Steel Shackle

The SX-PL705 combines a:

• Zinc alloy lock body
• A3 steel shackle

This construction provides a solid physical structure while keeping the padlock compact enough for everyday use.

It is suitable for applications where a conventional padlock would normally be used but where users want the convenience of smart access.

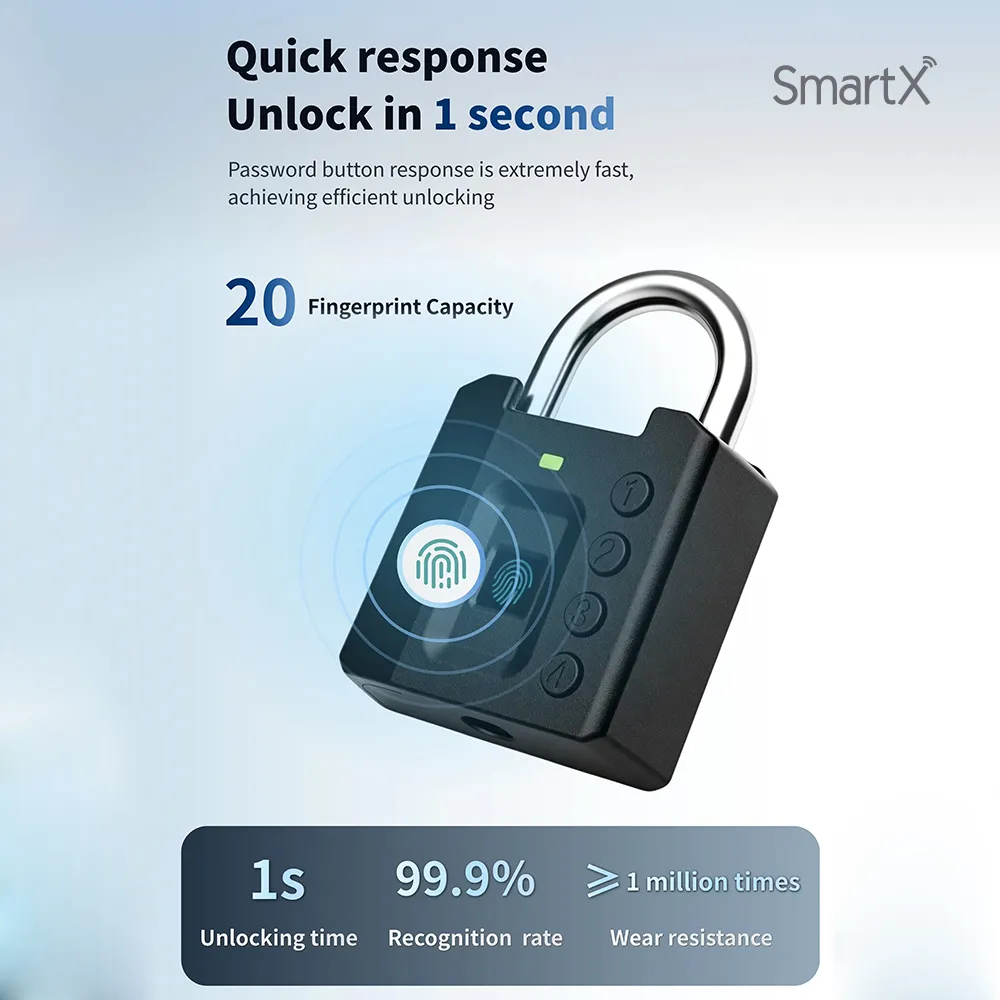

Up to 20 Fingerprints & 100 Passcodes

The SX-PL705 is designed not only for individual use but also for shared access.

Fingerprint Capacity

Up to 20 fingerprints

Multiple authorized fingerprints can be registered for different users.

Password Capacity

Up to 100 password combinations

This provides considerably more flexibility when multiple people require access to the same lock.

For shared facilities, storage areas, offices and other applications, this can be more convenient than distributing and recovering physical keys.

Battery-Powered Smart Padlock

The SX-PL705 operates using:

2 × CR2032 Button Batteries

The specified standby performance is approximately up to 9 months or around 3,000 unlocking operations, depending on usage and operating conditions.

The padlock provides a low-battery indication to help remind users when battery replacement is required.

When the red indicator repeatedly flashes after unlocking, the battery should be replaced promptly.

Battery life varies depending on usage frequency, environmental conditions and other operating factors.

Low-Battery Warning

The SX-PL705 provides a low-battery warning through its indicator.

When the battery becomes low, the red indicator can flash repeatedly after unlocking.

The manufacturer indicates that the lock may continue operating for approximately one month or around 100 unlock operations after the low-battery indication appears, but battery replacement should not be delayed.

Easy User Management Through Tuya App

Once the padlock is paired with the Tuya App, users can be managed through the lock’s member-management functions.

You can register:

• Fingerprints
• Passcodes
• User names

This makes it easier to organize access when several people use the same padlock.

For larger or remotely managed installations, adding the compatible Bluetooth WiFi Gateway further expands the usefulness of the Tuya ecosystem.

Smart Padlock for Home, Office & Outdoor Applications

The SX-PL705 can be used in a variety of situations where a conventional padlock would normally be installed.

Suitable applications include:

• Home gates
• Storage rooms
• Office storage
• Lockers
• Warehouse access
• Tool storage
• Equipment storage
• Outdoor cabinets
• Rental properties
• Shops
• Small commercial facilities
• Personal storage areas
• Travel and temporary security applications

The exact suitability depends on the physical dimensions and requirements of the installation.

Tuya Smart Padlock for Bangladesh

The SX-PL705 is particularly useful for customers in Bangladesh who want to upgrade from a traditional padlock to smart, keyless access without installing a full-size smart door lock.

For example, instead of carrying a key for a storage-room padlock, an authorized user can use a fingerprint, passcode or smartphone.

And when remote management is required, a compatible Tuya Bluetooth WiFi Gateway can extend the system beyond local Bluetooth operation.

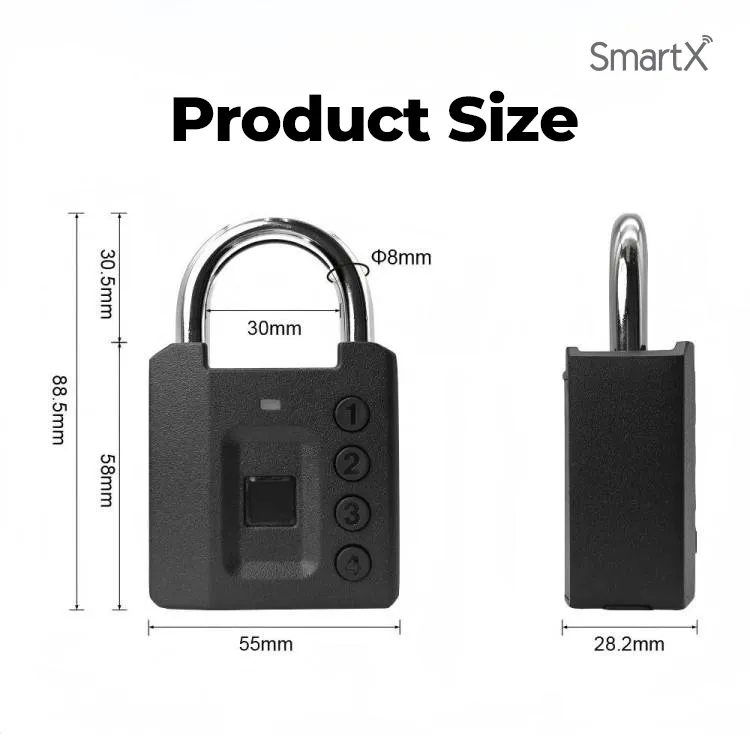

Technical Specifications

*Actual battery life varies according to usage and operating conditions.

Battery Replacement

When the low-battery warning appears, replace the batteries promptly.

To replace the batteries:

1. Use a small screwdriver to loosen the screw at the bottom.
2. Remove the battery compartment.
3. Replace both CR2032 batteries.
4. Ensure the batteries are installed in the correct orientation.
5. Reinstall and tighten the battery compartment.

Important: The two button batteries are stacked in the same direction according to the manufacturer’s installation instructions. Follow the polarity markings inside the battery compartment.

Battery Safety Information

This product uses CR2032 button batteries.

Button batteries can be extremely dangerous if swallowed.

• Keep new and used batteries away from children.
• Never allow children to play with loose batteries.
• Dispose of used batteries promptly and responsibly.
• If a battery is swallowed or suspected to have been inserted into the body, seek emergency medical attention immediately.
• If the battery compartment cannot be securely closed, stop using the product and keep it away from children.
• Do not dispose of used batteries with ordinary household waste. Follow appropriate battery recycling/disposal procedures.

Important Note About Factory Experience Mode

The manufacturer indicates that the padlock may be supplied in an initial experience mode, in which an unregistered fingerprint may be able to unlock the device.

Register the administrator/user fingerprint and bind the padlock to the Tuya App before putting the product into normal use.

This is particularly important if the padlock is being installed for security purposes.

SmartX BD – Smart Security & Home Automation Solutions

The SmartX SX-PL705 Tuya Bluetooth Smart Padlock is part of SmartX BD’s growing range of smart security and home automation products in Bangladesh.

Along with smart padlocks, SmartX BD provides smart door locks, smart rim locks, smart cabinet locks, smart switches, smart plugs, smart gateways and other smart home automation solutions.

For customers who need remote smart-lock functionality, compatible Tuya Bluetooth WiFi Gateways are also available separately.
