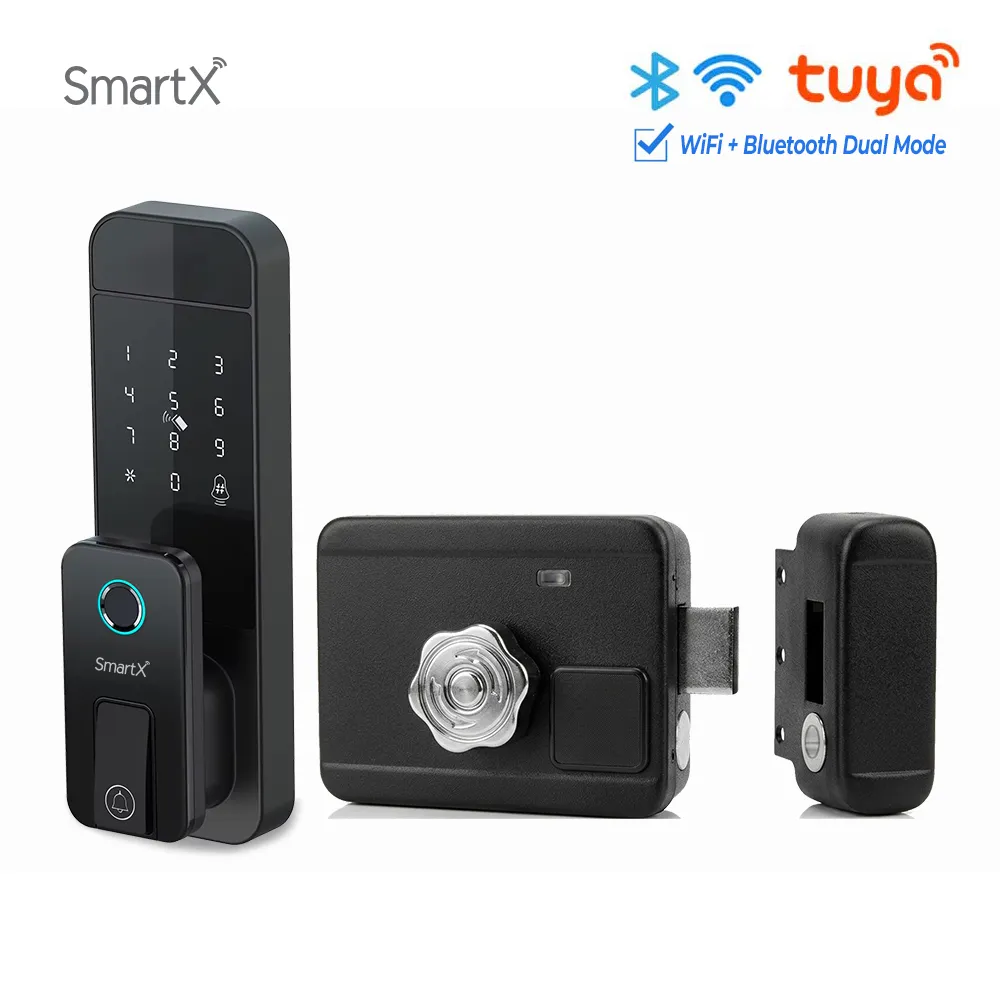

SmartX WiFi + Bluetooth Dual Mode Smart Rim Lock for Door & Gate

The SmartX SX-RL61 is a next-generation smart rim lock designed for both wooden doors and metal pocket gates, bringing keyless access, smartphone control and remote door management to residential and commercial entrances.

Unlike conventional digital rim locks that rely heavily on manual user management from the lock itself, the SX-RL61 combines WiFi + Bluetooth dual-mode connectivity to provide a more convenient experience through the Tuya / Smart Life App.

Its design is particularly suitable for main entrance doors, building gates, apartment entrances, houses, offices and other access points where multiple users may need to be registered and managed.

The lock also features a separate, dedicated doorbell button, making it much easier for visitors to recognize and press when requesting entry.

WiFi + Bluetooth Dual Mode Smart Lock

The biggest advantage of the SX-RL61 is its dual-mode WiFi + Bluetooth connectivity.

The two connections serve different purposes and work together to make smart lock management considerably easier.

WiFi Connection – Remote Access & Notifications

The WiFi connection allows you to access important smart features remotely through the Tuya / Smart Life App.

Depending on the configured functions, you can:

• Receive notifications when a registered user unlocks the door
• Receive a doorbell/calling request and Remotely unlock the door when required
• Generate OTP/Dynamic Passcode from App over the Internet

This makes the SX-RL61 particularly useful as a main entrance or building gate smart lock, where the owner may not always be physically near the door.

Bluetooth Connection – Easier User Management

The Bluetooth connection adds an especially useful feature for households, offices and buildings with multiple users.

Through the Bluetooth device interface in the Tuya / Smart Life App, users can be added and deleted directly from the App, with users identified by their names.

This eliminates the inconvenience of maintaining a separate manual record of user numbers just to remove a particular user later.

For a main metal gate with many registered residents, family members, staff or authorized users, this can make ongoing access management much easier.

Easier User Management for Multiple Users

Managing users is one of the most important considerations when installing a smart lock on a main entrance or metal pocket gate.

Traditional WiFi-only smart lock configurations may require users to be added or deleted through the lock’s physical keypad using administrator authorization and individual user numbers.

The SX-RL61 provides a more convenient alternative through its Bluetooth-connected Tuya App interface.

You can register users with their names and manage them through the App, making it easier to:

• Add new users
• Remove former users
• Manage family members
• Manage office employees
• Manage building residents
• Maintain organized access credentials

This makes the SX-RL61 particularly suitable for locations where many different people need access to the same entrance.

Dedicated Doorbell Button for Visitors

The SX-RL61 introduces a simple but valuable design improvement: a separate, dedicated doorbell button on the exterior panel.

Instead of requiring visitors to identify a multifunction touch button or use a keypad function to call the homeowner, the dedicated button is clearly visible and easy to understand.

A new visitor can simply press the doorbell button to send a calling request.

This is especially useful for:

• Main building gates
• Apartment entrances
• Residential front doors
• Offices
• Shops
• Family homes

The dedicated doorbell design makes the smart entrance experience more intuitive for people who are using the lock for the first time.

Multiple Smart Unlocking Options

The SmartX SX-RL61 provides several ways for authorized users to access the door, reducing dependence on traditional keys.

Available access methods include:

• Fingerprint
• Passcode / PIN
• IC Card
• Tuya / Smart Life App Remote Unlock based on Doorbell Button Press
• Manual Key

This combination allows different users to choose the access method most convenient for them.

Smart Gate Lock for Wooden Doors & Metal Pocket Gates

The SX-RL61 is designed as a versatile rim-mounted smart lock, making it suitable for applications beyond conventional wooden room doors.

It can be used on:

Wooden Doors

Suitable for residential and office wooden entrance doors where a surface-mounted smart lock is preferred.

Metal Pocket Gates

Its design also makes it suitable for metal pocket gates, including entrance gates commonly used at houses, buildings and other properties in Bangladesh.

This makes the SX-RL61 a practical choice for customers looking for a smart gate lock in Bangladesh, rather than only a smart lock for an indoor bedroom or wooden door.

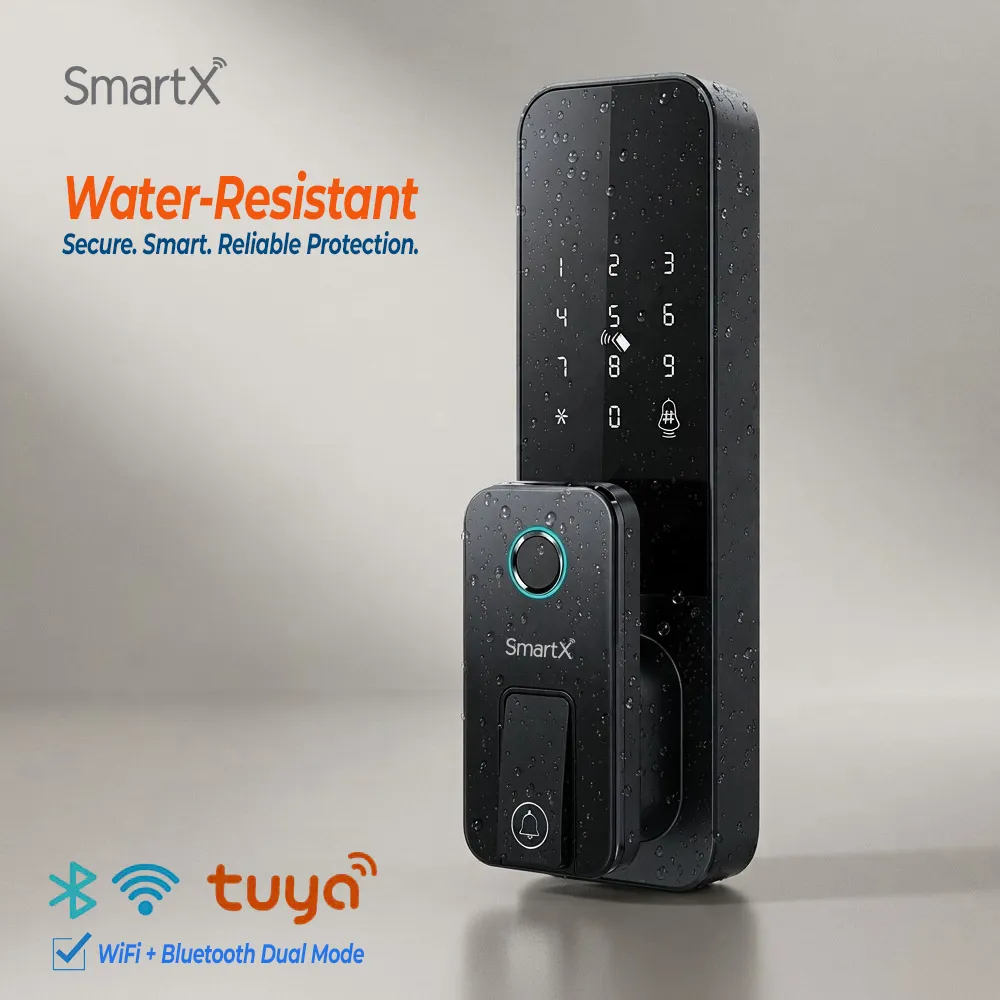

Water-Resistant Design for Outdoor Entrance Applications

The SX-RL61 features a water-resistant design, making it suitable for entrance doors and outdoor-facing gate applications where the lock may encounter moisture or rain.

However, for longer service life, the exterior unit should be installed in a location where it is protected from prolonged direct sunlight and excessive heat.

Installation Recommendation: Although the lock is water resistant, avoid exposing the device continuously to direct sunlight, extreme heat or heavy weather exposure. A suitable shade or canopy is recommended for outdoor metal gate installations.

Battery Powered Smart Rim Lock with Option to Run from 12V DC Power

The SX-RL61 operates using 4 × AA-size batteries. It has also option to run by using 12V DC Power (AC 220V to DC 12V Power Adapter can be used).

For reliable operation, use good-quality alkaline batteries and replace them when the lock indicates low battery.

Tuya & Smart Life App Integration

The SX-RL61 works with the Tuya / Smart Life ecosystem, allowing compatible smart functions to be managed from your smartphone.

This makes the lock a natural addition to a broader Tuya smart home automation system.

For customers already using Tuya-based smart switches, sensors, lighting, security products or gateways, the SX-RL61 can complement their existing smart home setup.

Ideal Applications

The SmartX SX-RL61 is suitable for:

• Smart Home Entrance Doors
• Wooden Main Doors
• Metal Pocket Gates
• Building Entrance Gates
• Apartment Entrances
• Office Doors
• Shop Entrances
• Residential Properties
• Rental Properties
• Shared Access Areas
• Small Commercial Buildings

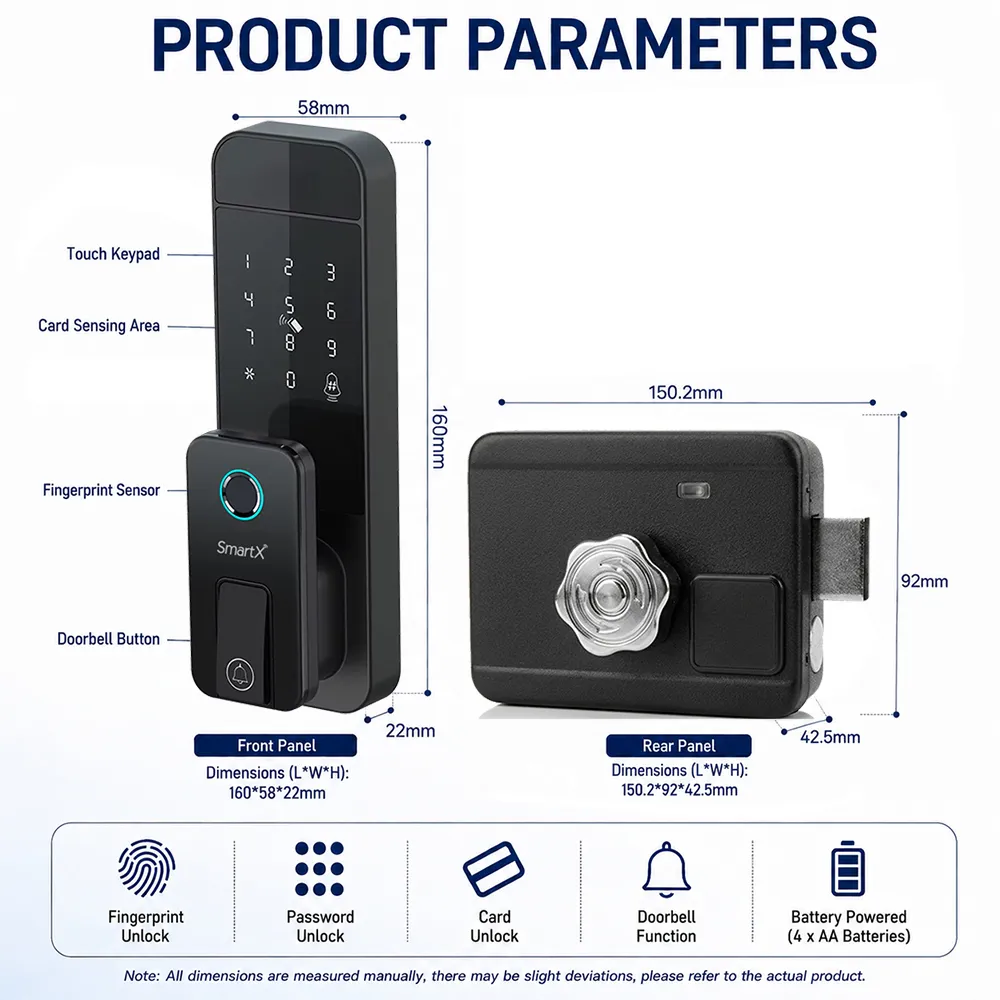

Technical Specifications

Why Choose the SmartX SX-RL61?

The SX-RL61 isn’t simply a replacement for a traditional rim lock.

It combines:

Smart Access + Remote Control + Bluetooth User Management + Dedicated Doorbell + Water Resistance

into a single entrance security solution.

For a main gate or entrance where multiple users need access, the Bluetooth-based user management is particularly valuable because adding or removing users can be handled more conveniently from the App instead of relying entirely on manual management through the lock’s keypad.

SmartX BD – Smart Door Lock & Home Automation Solutions in Bangladesh

The SmartX SX-RL61 is part of SmartX BD’s growing range of smart security and home automation products in Bangladesh.

Whether you need a smart rim lock for a wooden door, a smart gate lock for a metal pocket gate, a fingerprint door lock, a Tuya smart lock or a complete smart home automation solution, SmartX BD provides smart technology solutions for residential, office and commercial applications.
